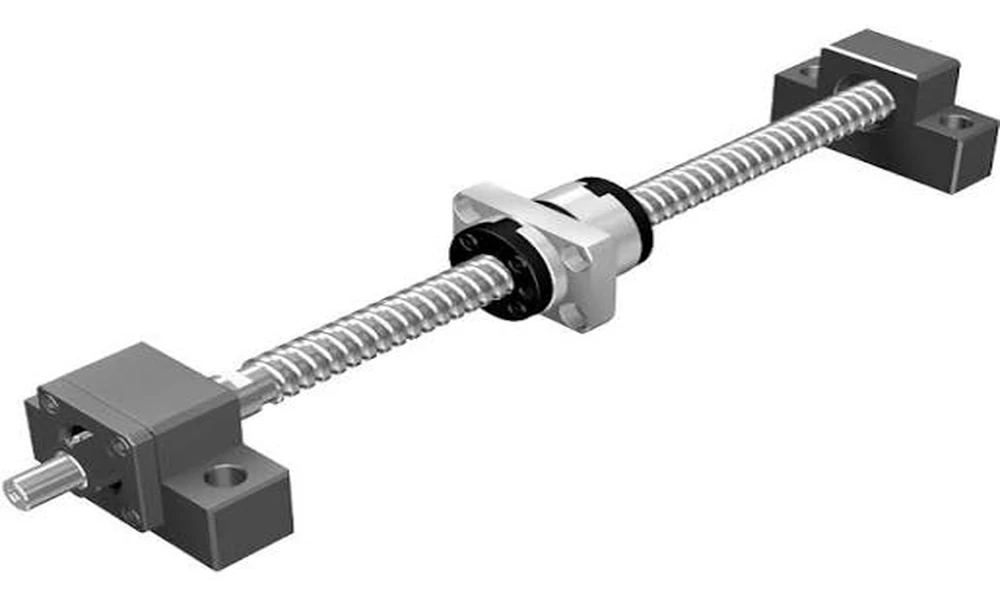

In automated machinery and power transmission systems that require high precision, small components such as shaft end support units play an important role. This is especially true in Ball Screw systems, which require proper shaft support to allow the shaft to rotate and transmit motion efficiently. One of the components commonly used in such systems is the FF type shaft end support bearing, or FF type shaft support unit.
What Is an FF Type Shaft End Support Bearing?
An FF type shaft end support bearing is (ลูกปืนจับยึดปลายเพลา คือ) a support unit designed to support the shaft end of a Ball Screw or power transmission shaft. It generally functions as the Floating End, which differs from the Fixed End support unit that determines the axial position of the shaft.
The unit typically consists of a bearing that supports radial loads and a housing that secures the bearing assembly to the machine structure. This design allows the shaft end to accommodate thermal expansion without creating excessive axial force within the system.
What Does an FF Type Shaft End Support Bearing Do?
The main function of an FF type shaft end support bearing is to support and stabilize the shaft end so that it remains properly positioned during operation. This is particularly important in systems involving continuous rotation or linear motion generated by a Ball Screw.
Key functions of the FF Type include:
– Supporting the shaft radially to help prevent excessive shaft movement or deflection from its intended alignment
– Maintaining proper shaft rotation alignment to help the power transmission system operate smoothly
– Accommodating temperature-related changes because the Floating End allows the shaft to expand in the axial direction
– Helping reduce issues caused by forces and vibration when the shaft rotates at high speeds or operates continuously
– Securing the shaft assembly to the machine structure to provide greater overall system stability
The operation of an FF type shaft end support bearing is therefore closely related to the support unit on the opposite side. In Ball Screw systems, the Fixed End and Floating End typically work together to control the shaft position and support its operation appropriately.
How Important Is an FF Type Shaft End Support Bearing in Machinery?
Although an FF type shaft end support bearing is a support component located at the shaft end, it can directly affect the stability of the overall system. If the shaft end is not properly supported, it may experience vibration, misalignment, or uneven movement, which can affect the overall accuracy of the system.
This is particularly important for machines that use Ball Screws in applications requiring precise positioning, such as CNC machines, automated systems, component manufacturing equipment, and other machinery that requires linear movement. Accurate shaft positioning is therefore an important consideration in system design.
Another important factor is thermal expansion, which occurs when the shaft expands as temperature changes. If the shaft is rigidly fixed at both ends without an appropriate design to accommodate thermal expansion, internal forces within the system may increase. Therefore, selecting and configuring the Fixed End and Floating End appropriately is an important part of system design.
How to Choose the Right FF Type Shaft End Support Bearing?
Choosing an FF type shaft end support bearing should involve more than simply considering the bearing size. The specifications of the entire system should also be checked, including the shaft diameter, Ball Screw size and model, available installation space, mounting method, rotational speed, and load characteristics.
In addition, the shaft end support unit should have dimensions and specifications that are compatible with the shaft and the Fixed End support unit so that both sides can work together properly. Installation is also important, as incorrect alignment may create abnormal forces and affect the service life of the bearing and shaft.
An FF type shaft end support bearing is an important component in Ball Screw systems. It helps support and stabilize the shaft end, accommodate shaft expansion, and reduce issues that could affect machinery accuracy. When selecting a shaft end support unit, factors such as shaft size, load characteristics, rotational speed, and the machine’s operating conditions should be considered to ensure compatibility with the overall system.
For factories, machine manufacturers, and industrial businesses looking for an FF shaft end support bearing, I.N.B. Enterprise provides product information to help businesses evaluate and select components suitable for their systems, supporting the requirements of industrial machinery applications that demand precision and stable performance.
